You'll see a lot of drivers here piss and moan about teaching the helpers to use the DIADs, but the truth is it really is in their best interest to do so. Going in with some knowledge will help a lot. They'll never admit it, but drivers aren't the best teachers in the world. They go too fast and use words we've never heard before. They do these steps every day, hundreds of times a day. It's like asking them how to breathe. They've been doing it so long they don't know how to explain it to a rookie.
I'm assuming you'll be using the DIAD 4. If not, all these steps are very similar on other DIADs. Probably all you'll ever do is DR packages (Driver Release, just drop them at someone's door) and sometimes get signatures. Both of which are pretty simple when you get the hang of it. I made some diagrams. It's tough to remember the order without actually doing it but I think these are correct.
To DR Packages:
View attachment 20770
1. Press the barcode button and scan the package. You'll probably suck at it at first, but it'll come quickly.
2. Press the big down arrow. The big arrows are on the right of the barcodes, the little arrows are on the left. If something goes wrong during this whole sequence it's probably because you forgot to press the big down arrow.
3. The bottom right of the screen will have an option to "Deliver." Press the button just under this option.
4. A menu will come up with various locations for where you left the package. Use the number pad to select which location you left it.
5. The check mark button in the upper right of the keypad is the "Stop Complete" button. Press that to complete the stop (duh).
To Get a Signature:

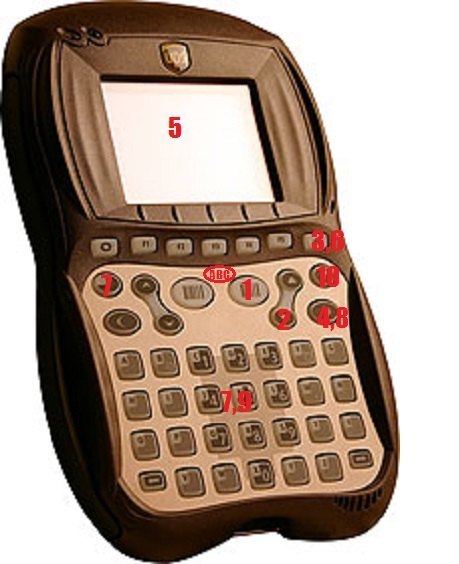

View attachment 20773
1. Press the barcode button and scan the package.
2. Big down arrow. Get in the habit of scanning the package and pressing the big down arrow.
3. In the upper right of the key pad there's a button that looks like a hand holding a pen. That's the signature button, press it.
4. The button that looks like a big right arrow is the enter button, press it.
5. Have the customer sign the screen (it'll look upside to you, right side up to them).
6. Press the signature button again.
7. Ask the customer their last name and type it. The DIAD 4s suck because they have this stupid toggle button to toggle the letters on and off. It's in the upper left and looks kind of like a backwards Pac-man. When you press this an "ABC" will light up between the two barcode buttons. Make sure this is on before you type letters and off again before you type numbers (or need to use the B and friend functions but don't worry about those yet).
8. After you type the name press the enter button again (big right arrow).
9. A menu will come up on the screen asking where you delivered the package. Use the number pad to select the appropriate location.
10. Press the stop complete button (check mark).
Practice these in your head. You'll learn them very quickly when you actually get a chance to use the DIAD. Hopefully the driver will let you use one. It makes the job much better to be able to work as a team instead of just being a runner.
